Ionic fraction data

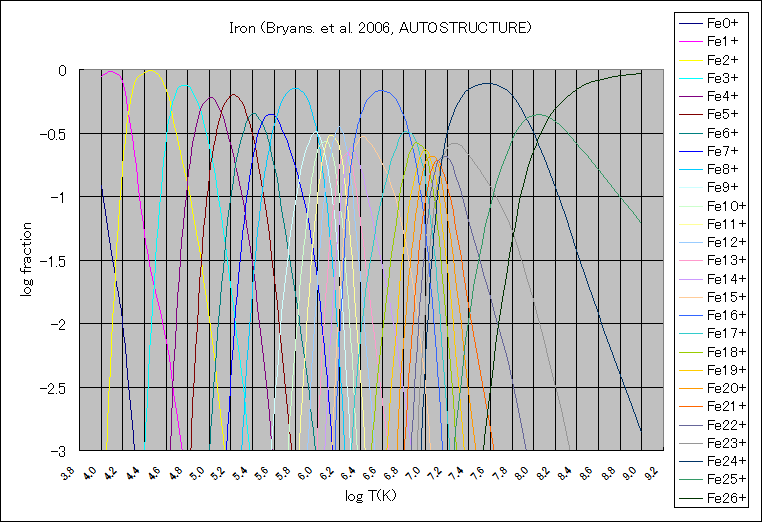

Bryans et al.(2006) - Iron(AUTOSTRUCTURE-BASED RESULTS)
log Fe0+ Fe1+ Fe2+ Fe3+ Fe4+ Fe5+ Fe6+ Fe7+ Fe8+ Fe9+ Fe10+ Fe11+ Fe12+ Fe13+
4.0 -0.916 -0.056 -4.006
4.1 -1.45 -0.019 -2.165
4.2 -1.981 -0.085 -0.776 -8.101
4.3 -2.883 -0.589 -0.13 -5.069
4.4 -3.933 -1.291 -0.023 -3.046 -10.64
4.5 -4.698 -1.747 -0.021 -1.52 -6.727
4.6 -5.371 -2.145 -0.158 -0.527 -3.813 -10.373
4.7 -6.163 -2.688 -0.507 -0.17 -1.969 -6.405 -13.158
4.8 -6.947 -3.245 -0.897 -0.127 -0.898 -3.638 -8.368
4.9 -7.784 -3.872 -1.369 -0.279 -0.38 -1.843 -5.095 -10.166
5.0 -8.732 -4.623 -1.972 -0.61 -0.224 -0.835 -3.049 -6.479 -11.453
5.1 -9.801 -5.504 -2.709 -1.101 -0.322 -0.37 -1.808 -4.08 -7.575
5.2 -10.947 -6.47 -3.532 -1.695 -0.581 -0.208 -1.023 -2.491 -4.934 -12.007
5.3 -12.164 -7.514 -4.43 -2.376 -0.969 -0.25 -0.544 -1.405 -3.056 -8.535 -14.671
5.4 -13.504 -8.685 -5.453 -3.19 -1.522 -0.503 -0.35 -0.72 -1.741 -5.916 -10.608
5.5 -10.023 -6.64 -4.174 -2.268 -0.984 -0.441 -0.395 -0.901 -4.005 -7.517 -11.373
5.6 -11.506 -7.968 -5.304 -3.179 -1.655 -0.766 -0.361 -0.434 -2.658 -5.206 -8.1 -11.438
5.7 -13.06 -9.365 -6.506 -4.176 -2.431 -1.232 -0.51 -0.215 -1.715 -3.476 -5.569 -8.043 -11.515
5.8 -14.627 -10.774 -7.723 -5.199 -3.248 -1.767 -0.762 -0.147 -1.049 -2.166 -3.587 -5.346 -7.95
5.9 -12.211 -8.97 -6.26 -4.116 -2.377 -1.113 -0.216 -0.62 -1.208 -2.061 -3.221 -5.102
6.0 -13.783 -10.357 -7.468 -5.14 -3.164 -1.662 -0.512 -0.495 -0.64 -1.01 -1.664 -2.936
6.1 -12.049 -8.988 -6.482 -4.288 -2.565 -1.183 -0.805 -0.574 -0.531 -0.751 -1.502
6.2 -14.088 -10.86 -8.184 -5.788 -3.856 -2.26 -1.566 -1.007 -0.609 -0.451 -0.752
6.3 -13.129 -10.287 -7.704 -5.575 -3.779 -2.805 -1.955 -1.247 -0.755 -0.663
6.4 -12.798 -10.04 -7.723 -5.738 -4.509 -3.398 -2.418 -1.627 -1.187
6.5 -12.409 -9.912 -7.748 -6.287 -4.937 -3.713 -2.653 -1.904
6.6 -14.647 -11.978 -9.642 -7.966 -6.397 -4.952 -3.648 -2.622
6.7 -13.932 -11.432 -9.557 -7.784 -6.137 -4.61 -3.335
6.8 -13.182 -11.119 -9.156 -7.322 -5.59 -4.089
6.9 -14.983 -12.744 -10.602 -8.592 -6.67 -4.964
7.0 -14.547 -12.236 -10.061 -7.963 -6.068
7.1 -14.187 -11.857 -9.593 -7.524
7.2 -13.991 -11.571 -9.339
7.3 -13.677 -11.288
7.4 -13.198
7.5
7.6
7.7
7.8
7.9
8.0
8.1
8.2
8.3
8.4
8.5
8.6
8.7
8.8
8.9
9.0
log Fe14+ Fe15+ Fe16+ Fe17+ Fe18+ Fe19+ Fe20+ Fe21+ Fe22+ Fe23+ Fe24+ Fe25+ Fe26+
4.0
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
5.0
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8 -10.923 -14.448
5.9 -7.281 -9.903 -11.968
6.0 -4.439 -6.292 -7.615 -13.224
6.1 -2.421 -3.616 -4.383 -8.649 -13.594
6.2 -1.163 -1.797 -2.162 -5.382 -9.157 -13.546
6.3 -0.628 -0.791 -0.856 -3.263 -6.119 -9.48 -13.285
6.4 -0.762 -0.538 -0.36 -2.127 -4.259 -6.807 -9.712 -13.059
6.5 -1.136 -0.593 -0.207 -1.457 -3.011 -4.913 -7.099 -9.659 -12.492
6.6 -1.553 -0.744 -0.169 -0.991 -2.072 -3.452 -5.059 -6.984 -9.114 -11.503 -13.946
6.7 -1.998 -0.962 -0.21 -0.669 -1.353 -2.301 -3.433 -4.839 -6.394 -8.176 -9.973
6.8 -2.514 -1.276 -0.358 -0.499 -0.844 -1.426 -2.159 -3.133 -4.212 -5.493 -6.755 -14.535
6.9 -3.174 -1.754 -0.675 -0.536 -0.582 -0.847 -1.238 -1.846 -2.524 -3.386 -4.202 -10.412
7.0 -4.084 -2.494 -1.259 -0.868 -0.648 -0.633 -0.726 -1.015 -1.35 -1.855 -2.298 -7.239 -12.876
7.1 -5.361 -3.611 -2.225 -1.604 -1.144 -0.877 -0.704 -0.714 -0.751 -0.948 -1.08 -4.99 -9.549
7.2 -7.012 -5.109 -3.576 -2.743 -2.062 -1.567 -1.155 -0.914 -0.687 -0.616 -0.492 -3.563 -7.242
7.3 -8.807 -6.758 -5.08 -4.05 -3.166 -2.46 -1.829 -1.36 -0.9 -0.593 -0.256 -2.643 -5.6
7.4 -10.571 -8.379 -6.559 -5.345 -4.27 -3.369 -2.536 -1.858 -1.187 -0.673 -0.158 -1.983 -4.342
7.5 -12.255 -9.926 -7.967 -6.579 -5.325 -4.241 -3.22 -2.349 -1.487 -0.785 -0.117 -1.476 -3.337
7.6 -13.868 -11.406 -9.31 -7.757 -6.334 -5.078 -3.88 -2.828 -1.79 -0.918 -0.111 -1.079 -2.522
7.7 -12.838 -10.61 -8.899 -7.316 -5.895 -4.531 -3.309 -2.108 -1.078 -0.139 -0.774 -1.862
7.8 -14.252 -11.891 -10.026 -8.289 -6.714 -5.191 -3.808 -2.454 -1.274 -0.208 -0.555 -1.339
7.9 -13.187 -11.172 -9.282 -7.552 -5.875 -4.337 -2.839 -1.517 -0.326 -0.42 -0.939
8.0 -14.496 -12.341 -10.308 -8.431 -6.605 -4.915 -3.272 -1.809 -0.491 -0.36 -0.648
8.1 -13.505 -11.334 -9.319 -7.352 -5.52 -3.74 -2.141 -0.698 -0.363 -0.445
8.2 -14.659 -12.356 -10.207 -8.105 -6.137 -4.227 -2.497 -0.931 -0.411 -0.308
8.3 -13.369 -11.089 -8.858 -6.758 -4.722 -2.865 -1.177 -0.488 -0.217
8.4 -14.367 -11.962 -9.603 -7.376 -5.217 -3.236 -1.428 -0.58 -0.155
8.5 -12.82 -10.338 -7.986 -5.707 -3.603 -1.677 -0.681 -0.113
8.6 -13.665 -11.061 -8.587 -6.189 -3.965 -1.922 -0.786 -0.084
8.7 -14.509 -11.786 -9.192 -6.677 -4.333 -2.173 -0.897 -0.062
8.8 -12.489 -9.778 -7.148 -4.686 -2.411 -1.006 -0.047
8.9 -13.177 -10.349 -7.605 -5.027 -2.639 -1.112 -0.036
9.0 -13.853 -10.911 -8.053 -5.361 -2.859 -1.215 -0.028
